Page 54 - 《摩擦学学报》2020年第3期
P. 54

320                                     摩   擦   学   学   报                                第 40 卷


                                                                                  A


                                                                                     1 mm
                                                                                  B

            A-B


                                                                                    100 μm

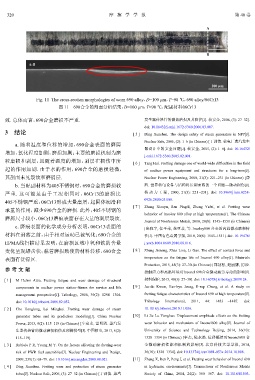

               Fig. 11  The cross-section morphologies of worn 690 alloy，D=100 μm，T=90 ℃，690 alloy/06Cr13
                        图 11    690合金的剖面分析结果，D=100 μm，T=90 ℃，配副材料06Cr13

   致. 总体而言，690合金磨损不严重.                                    发生器传热管的微振磨损及其防护[J]. 核安全, 2006, (3): 27–32].
                                                          doi: 10.16432/j.cnki.1672-5360.2006.03.007.
   3    结论                                           [  5  ]  Ding  Xunshen.  The  design  safety  of  steam  generators  in  NPP[J].
                                                          Nuclear Safe, 2005, (2): 1–6 (in Chinese) [丁训慎. 核电厂蒸汽发生
       a. 随着温度和位移的增加，690合金表面的磨屑
                                                          器设计中的安全问题[J]. 核安全, 2005, (2): 1–6]. doi: 10.16432/
   增加，氧化程度加剧，磨损加剧；主要的磨损机制为磨
                                                          j.cnki.1672-5360.2005.02.001.
   粒磨损和剥层，且随着温度的增加，剥层在损伤中所
                                                     [  6  ]  Tang Hui. Fretting damage one of world-wide difficulties in the field
   起的作用加剧. 由于水的作用，690合金的磨损轻微，                             of  nuclear  power  equipment  and  structures  for  a  long-term[J].
   其剖面未见裂纹和磨屑层.                                           Nuclear Power Engineering, 2000, 21(3): 221–231 (in Chinese) [唐
       b. 当配副材料为405不锈钢时，690合金的磨损较                         辉. 世界核电设备与结构将长期面临的一个问题—微动损伤[J].
   严重. 这可能是由于工况相同时，06Cr13的磨损比                             核 动 力 工 程 ,  2000,  21(3):  221 –231].  doi:  10.3969/j.issn.0258-
   405不锈钢严重，06Cr13形成大量磨屑，起固体润滑和                           0926.2000.03.008.
                                                     [  7  ]  Zhang  Xiaoyu,  Ren  Pingdi,  Zhang  Yafei,  et  al.  Fretting  wear
   承重的作用，减少690合金的磨损. 此外，405不锈钢的
                                                          behavior of Incoloy 800 alloy at high temperature[J]. The Chinese
   磨屑尺寸较小，06Cr13磨痕表面存在大量的剥层裂纹.
                                                          Journal of Nonferrous Metals, 2010, 20(8): 1545–1551 (in Chinese)
       c. 磨痕表面的化学成分分析表明，06Cr13表面的                         [张晓宇, 任平弟, 张亚非, 等. Incoloy800 合金的高温微动磨损特
   材料在剥落之前，由于相对运动已被氧化；690合金的                              性[J]. 中国有色金属学报, 2010, 20(8): 1545–1551]. doi: 10.19476/
   EPMA线扫描结果表明，在磨损区域中氧和铁的含量                               j.ysxb.1004.0609.2010.08.016.
   变化呈现锯齿状；黏着磨损致使的材料转移，690合金                         [  8  ]  Zheng Jinsong, Zhao Lina, Li Gan. The effect of contact force and
   表面有贫镍区.                                                temperature  on  the  fatigue  life  of  Inconel  690  alloy[J].  Materials
                                                          Protection, 2015, 48(3): 27–30 (in Chinese) [郑劲松, 赵丽娜, 厉淦.
   参 考 文 献
                                                          接触应力和高温环境对Inconel 690合金微动疲劳寿命的影响[J].
   [  1  ]  M  Helmi  Attia.  Fretting  fatigue  and  wear  damage  of  structural  材料保护, 2015, 48(3): 27–30]. doi: 10.16078/j.tribology.2019124.
       components  in  nuclear  power  station-fitness  for  service  and  life  [  9  ]  Jae-do  Kwon,  Han-kyu  Jeung,  Il-sup  Chung,  et  al.  A  study  on
       management  perspective[J].  Tribology,  2006,  39(2):  1294 –1304.  fretting fatigue characteristics of Inconel 690 at high temperature[J].
       doi: 10.1016/j.triboint.2006.02.052.               Tribology   International,   2011,   44:   1483  –1487.   doi:
   [  2  ]  Che  Honglong,  Lei  Mingkai.  Fretting  wear  damage  of  steam  10.1016/j.triboint.2010.11.006.
       generator  tubes  and  its  prediction  modeling[J].  China  Nuclear  [10]  Li Jie Lu Yonghao. Displacement amplitude effects on the fretting
       Power, 2013, 6(2): 115–119 (in Chinese) [车宏龙, 雷明凯. 蒸汽发  wear  behavior  and  mechanism  of  Inconel600  alloy[J].  Journal  of
       生器传热管的微动磨损损伤及预测模型[J]. 中国核电, 2013, 6(2):            University  of  Science  and  Technology  Beijing,  2014,  36(10):
       115–119].                                          1328–1334 (in Chinese) [李杰, 陆永浩. 位移幅值对Inconel600 合
   [  3  ]  Rubiolo P R, Young M Y. On the factors affecting the fretting-wear  金微动磨损性能和机制的影响[J]. 北京科技大学学报, 2014,
       risk  of  PWR  fuel  assemblies[J].  Nuclear  Engineering  and  Design,  36(10): 1328–1334]. doi: 10.13374/j.issn1001-053x.2014.10.008.
       2009, 239(1): 68–79. doi: 10.1016/j.nucengdes.2008.08.021.  [11]  Zhang X, Ren P, Peng J, et al. Fretting wear behavior of Inconel 690
   [  4  ]  Ding  Xunshen.  Fretting  wear  and  protection  of  steam  generator  in  hydrazine  environments[J].  Transactions  of  Nonferrous  Metals
       tubes[J]. Nuclear Safe, 2006, (3): 27–32 (in Chinese) [丁训慎. 蒸汽  Society  of  China,  2014,  24(2):  360 –367.  doi:  10.1016/S1003-
   49   50   51   52   53   54   55   56   57   58   59
