Page 99 - 《爆炸与冲击》2025年第12期
P. 99

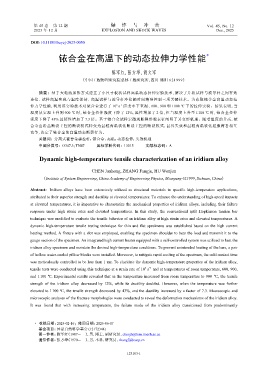

第 45 卷    第 12 期                  爆    炸    与    冲    击                      Vol. 45, No. 12
                2025 年 12 月                   EXPLOSION AND SHOCK WAVES                          Dec., 2025

               DOI:10.11883/bzycj-2025-0050


                           铱合金在高温下的动态拉伸力学性能                                                  *


                                                   陈军红,张方举,胡文军

                                      (中国工程物理研究院总体工程研究所,四川 绵阳 621999)

                  摘要: 基于大电流加热方式建立了小尺寸板状试样高温动态拉伸实验技术,解决了片状试样与波导杆之间有效
               连接、试样高温实现与温度保持、高温试样与波导杆冷接触时间精准控制三项关键技术。为获取铱合金高温动态拉
               伸力学性能,利用该实验技术对铱合金进行了                10  s 应变率下室温、600、900    和  1 100 ℃  下的拉伸实验。结果表明,当
                                                     3
                                                      −1
               温度从室温上升到       900 ℃  时,铱合金拉伸强度下降了        12%,延性增加了     2  倍,但当温度上升至     1 100 ℃  时,铱合金拉伸
               强度下降了    43%  且延性增加了    7.3  倍。基于铱合金试样宏微观断裂形貌表征阐明了其变形机理。随着温度的升高,铱
               合金由沿晶断裂主控的断裂模式转变为晶粒高温软化断裂主控的断裂模式,晶界失效和晶粒高温软化屈服两者相互
               竞争,决定了铱合金的高温动态断裂行为。
                  关键词: 分离式霍普金森拉杆;铱合金;高温;动态拉伸;失效机理
                  中图分类号: O347.3; TN47   国标学科代码: 13015   文献标志码: A

                   Dynamic high-temperature tensile characterization of an iridium alloy


                                          CHEN Junhong, ZHANG Fangju, HU Wenjun
                     (Institute of System Engineering, China Academy of Engineering Physics, Mianyang 621999, Sichuan, China)

               Abstract:   Iridium  alloys  have  been  extensively  utilized  as  structural  materials  in  specific  high-temperature  applications,
               attributed to their superior strength and ductility at elevated temperatures. To enhance the understanding of high-speed impacts
               at elevated temperatures, it is imperative to characterize the mechanical properties of iridium alloys, including their failure
               response  under  high  strain  rates  and  elevated  temperatures.  In  this  study,  the  conventional  split  Hopkinson  tension  bar
               technique was modified to evaluate the tensile behavior of an iridium alloy at high strain rates and elevated temperatures. A
               dynamic  high-temperature  tensile  testing  technique  for  thin  and  flat  specimens  was  established  based  on  the  high  current
               heating method. A fixture with a slot was employed, enabling the specimen shoulder to bear the load and transmit it to the
               gauge section of the specimen. An integrated high current heater equipped with a self-controlled system was utilized to heat the
               iridium alloy specimen and maintain the desired high-temperature conditions. To prevent unintended heating of the bars, a pair
               of hollow water-cooled pillow blocks were installed. Moreover, to mitigate rapid cooling of the specimen, the cold contact time
               was meticulously controlled to be less than 1 ms. To elucidate the dynamic high-temperature properties of the iridium alloy,
                                                                 3
                                                                   −1
               tensile tests were conducted using this technique at a strain rate of 10  s  and at temperatures of room temperature, 600, 900,
               and 1 100 ℃. Experimental results revealed that as the temperature increased from room temperature to 900 ℃, the tensile
               strength  of  the  iridium  alloy  decreased  by  12%,  while  its  ductility  doubled.  However,  when  the  temperature  was  further
               elevated to 1 100 ℃, the tensile strength decreased by 43%, and the ductility increased by a factor of 7.3. Macroscopic and
               microscopic analyses of the fracture morphologies were conducted to reveal the deformation mechanisms of the iridium alloy.
               It  was  found  that  with  increasing  temperature,  the  failure  mode  of  the  iridium  alloy  transitioned  from  predominantly



                 *   收稿日期: 2025-02-16;修回日期: 2025-06-07
                   基金项目: 国家自然科学基金       (12172344)
                   第一作者: 陈军红(1987- ),男,博士,副研究员,chenjh@lnm.imech.ac.cn
                   通信作者: 张方举(1970- ),男,本科,研究员,zhangfj@caep.cn


                                                         123103-1
   94   95   96   97   98   99   100   101   102   103   104
