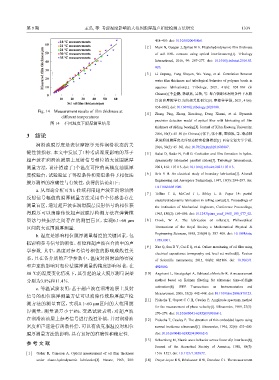

第 9 期 王禹, 等: 考虑温度影响的大范围膜厚超声相位检测方法研究
18 ℃ measurements
60 21 ℃ measurements
Measured film thickness/μm 40 35 ℃ measurements [ 3 ] International, 2016, 99: 267–277. doi: 10.1016/j.triboint.2016.03.
24 ℃ measurements
50
30 ℃ measurements
30
20
10
0 aqueous lubrication[J]. Tribology, 2021, 41(6): 858–869 (in
10 20 30 40 50
Set oil film thickness/μm
Fig. 14 Measurement results of film thickness at
different temperatures
图 14 不同温度下膜厚测量结果
3 结论
润滑油膜厚度是表征摩擦学元件润滑状态的关
键性能指标. 本文中发展了1种考虑温度影响的基于
超声波在润滑油膜层上反射信号相位的大范围膜厚
测量方法，设计搭建了1个温度可控的高精度油膜厚
度校验台，试验验证了等温条件和变温条件下相位法
膜厚测量的准确性与有效性，获得的结论如下：
a. 从理论分析可知，传统利用超声波在润滑油层
反射信号幅值的膜厚测量方法采用单个传感器存在
测量盲区，通过超声波在润滑膜层反射信号的相位获
得膜厚可以消除传统超声波膜厚检测方法在弹簧模
型法与共振法之间存在的测量盲区，实现0.1~60 μm
区间的大范围膜厚测量.
b. 温度是影响相位膜厚测量精度的关键因素，包
括影响参考信号的幅值、相位和超声波在介质中的声
学参数. 其中，温度对参考信号相位的影响成线性关
系，且在各介质的声学参数中，温度对润滑油的密度
和声速的影响对相位法膜厚测量的精度影响显著，在
80 ℃的温度变化情况下，其引起的最大膜厚测量误差
分别为3.8%和11.4％.
c. 等温试验表明：基于超声波在润滑油层上反射
信号的相位膜厚测量方法可以消除传统膜厚超声检
测方法的测量盲区，实现0.1~60 μm区间的大范围膜
厚测量，测量误差小于8%. 变温试验表明：对超声波
在润滑油油层上参考信号进行线性补偿，并对润滑油
密度和声速进行函数补偿，可以有效克服温度对相位
膜厚测量方法的影响，具有良好的准确性和稳定性.
参 考 文 献
[ 1 ] Gohar R, Cameron A. Optical measurement of oil film thickness 1516–1521. doi: 10.1121/1.385077.
under elasto-hydrodynamic lubrication[J]. Nature, 1963, 200: [14]
1339
458–459. doi: 10.1038/200458b0.
[ 2 ] Marx N, Guegan J, Spikes H A. Elastohydrodynamic film thickness
of soft EHL contacts using optical interferometry[J]. Tribology
020.
Li Jinpeng, Yang Shuyan, Wu Yang, et al. Correlation between
water film thickness and tribological behavior of polymer brush in
Chinese) [李金鹏, 杨淑燕, 吴杨, 等. 聚合物刷水润滑条件下水膜
60 厚度和摩擦学行为的相关性研究[J]. 摩擦学学报, 2021, 41(6):
858–869]. doi: 10.16078/j.tribology.2020188.
[ 4 ] Zhang Ping, Zhang Xiaodong, Dong Xiaoni, et al. Dynamic
precision detection model of optical fiber with lubricating oil film
thickness of sliding bearing[J]. Journal of Xi'an Jiaotong University,
2016, 50(5): 45–50 (in Chinese) [张平, 张小栋, 董晓妮, 等. 滑动轴
承润滑油膜厚度光纤动态精密检测模型[J]. 西安交通大学学报,
2016, 50(5): 45–50]. doi: 10.7652/xjtuxb201605007.
[ 5 ] Bulut D, Bader N, Poll G. Cavitation and film formation in hydro-
dynamically lubricated parallel sliders[J]. Tribology International,
2021, 162: 107113. doi: 10.1016/j.triboint.2021.107113.
[ 6 ] Brix V H. An electrical study of boundary lubrication[J]. Aircraft
Engineering and Aerospace Technology, 1947, 19(9): 294–297. doi:
10.1108/eb031549.
[ 7 ] Tallian T E, McCool J I, Sibley L B. Paper 14: partial
elastohydrodynamic lubrication in rolling contact[J]. Proceedings of
the Institution of Mechanical Engineers, Conference Proceedings,
1965, 180(2): 169–186. doi: 10.1243/pime_conf_1965_180_077_02.
[ 8 ] Crook, W A. The lubrication of rollers[J]. Philosophical
Transactions of the Royal Society a Mathematical Physical &
Engineering Sciences, 1958, 250(981): 387–409. doi: 10.1098/rsta.
1958.0001.
[ 9 ] Xue Q, Sun B Y, Cui Z Q, et al. Online monitoring of oil film using
electrical capacitance tomography and level set method[J]. Review
of Scientific Instruments, 2015, 86(8): 085106. doi: 10.1063/1.
4928060.
[10] Angrisani L, Baccigalupi A, SchianoLoMoriello R. A measurement
method based on Kalman filtering for ultrasonic time-of-flight
estimation[J]. IEEE Transactions on Instrumentation and
Measurement, 2006, 55(2): 442–448. doi: 10.1109/tim.2006.870123.
[11] Pialucha T, Guyott C C H, Cawley P. Amplitude spectrum method
for the measurement of phase velocity[J]. Ultrasonics, 1989, 27(5):
270–279. doi: 10.1016/0041-624X(89)90068-1.
[12] Pialucha T, Cawley P. The detection of thin embedded layers using
normal incidence ultrasound[J]. Ultrasonics, 1994, 32(6): 431–440.
doi: 10.1016/0041-624X(94)90062-0.
[13] Schoenberg M, Elastic wave behavior across linear slip interfaces[J],
Journal of the Acoustical Society of America, 1980, 68(5):
Dwyer-Joyce R S, Drinkwater B W, Donohoe C J. The measurement
