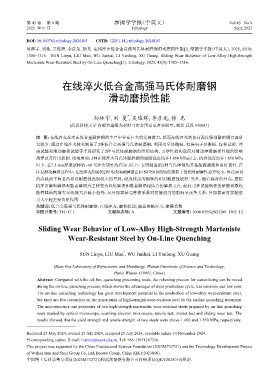

Page 51 - 摩擦学学报2025年第9期

第 45 卷 第 9 期 摩擦学学报（中英文） Vol 45 No 9
2025 年 9 月 Tribology Sept, 2025

DOI: 10.16078/j.tribology.2024105 CSTR: 32261.14.j.tribology.2024105

孙林宇, 刘曼, 吴俊辉, 李彦龙, 徐光. 在线淬火低合金高强马氏体耐磨钢滑动磨损性能[J]. 摩擦学学报（中英文）, 2025, 45(9):
1305−1316. SUN Linyu, LIU Man, WU Junhui, LI Yanlong, XU Guang. Sliding Wear Behavior of Low-Alloy High-Strength
Marteniste Wear-Resistant Steel by On-Line Quenching[J]. Tribology, 2025, 45(9): 1305−1316.

在线淬火低合金高强马氏体耐磨钢

滑动磨损性能

*
孙林宇, 刘 曼 , 吴俊辉, 李彦龙, 徐 光
(武汉科技大学 省部共建耐火材料与冶金国家重点实验室，湖北 武汉 430081)

摘 要: 在线淬火技术在低合金耐磨钢的生产中存在巨大的发展潜力，然而在线淬火制备高强度级别耐磨钢方面研
究较少. 通过在线淬火技术制备了2种低合金高强马氏体耐磨钢，利用光学显微镜、扫描电子显微镜、拉伸试验、冲
击试验和滑动磨损试验等手段研究了2种马氏体耐磨钢的组织结构、力学性能和载荷对滑动摩擦磨损性能的影响
规律及其作用机制. 结果表明：2种在线淬火马氏体耐磨钢的屈服强度均在1 450 MPa以上，抗拉强度均在1 850 MPa
以上，且7.5 mm厚度试样的−40 ℃冲击韧性均在30 J以上，表明制备的2种马氏体钢均具备超高强度和良好韧性. 在
往复滑动磨损过程中，在线淬火制备的2种马氏体耐磨钢在10 N和50 N的较低载荷下的相对耐磨性差异较小；但在90 N
的高载荷下两者的相对耐磨性出现较大的差异，硬度较高的钢种的相对耐磨性较好. 另外，随着载荷的升高，磨损
机理由磨粒磨损和黏着磨损为主转变为氧化磨损和黏着磨损相结合的磨损方式. 最后，2种试验钢种的摩擦系数均
随着载荷的增大呈先增大后减小趋势，且外加载荷与摩擦系数对接触应力的影响呈竞争关系，外加载荷对接触应
力大小起主要决定作用.
关键词: 低合金高强马氏体耐磨钢; 在线淬火; 磨损机理; 赫兹接触应力; 摩擦系数
中图分类号: TH117.1 文献标志码: A 文章编号: 1004-0595(2025)09–1305–12

Sliding Wear Behavior of Low-Alloy High-Strength Marteniste

Wear-Resistant Steel by On-Line Quenching

*
SUN Linyu, LIU Man , WU Junhui, LI Yanlong, XU Guang
(State Key Laboratory of Refractories and Metallurgy, Wuhan University of Science and Technology,
Hubei Wuhan 430081, China)
Abstract: Compared with the off-line quenching processing route, the reheating process for austenitizing can be saved
during the on-line quenching process, which shows the advantages of short production cycle, less emission and low cost.
The on-line quenching technology has great development potential in the production of low-alloy wear-resistant steel,
but there are few researches on the preparation of high-strength wear-resistant steel by the on-line quenching treatment.
The microstructure and properties of two high-strength martensitic wear-resistant steels prepared by on-line quenching
were studied by optical microscope, scanning electron microscope, tensile test, impact test and sliding wear test. The
results showed that the yield strength and tensile strength of two steels were above 1 450 and 1 850 MPa, respectively.

Received 23 May 2024, revised 25 July 2024, accepted 25 July 2024, available online 14 November 2024.
*Corresponding author. E-mail: liuman@wust.edu.cn, Tel: +86-13971287356.
This project was supported by the China Postdoctoral Science Foundation (2023M732721) and the Technology Development Project
of Wuhan Iron and Steel Group Co, Ltd, Baowu Group, China (QKY2023010).
中国博士后科学基金项目(2023M732721)和武汉钢铁有限公司科研项目(QKY2023010)资助.
